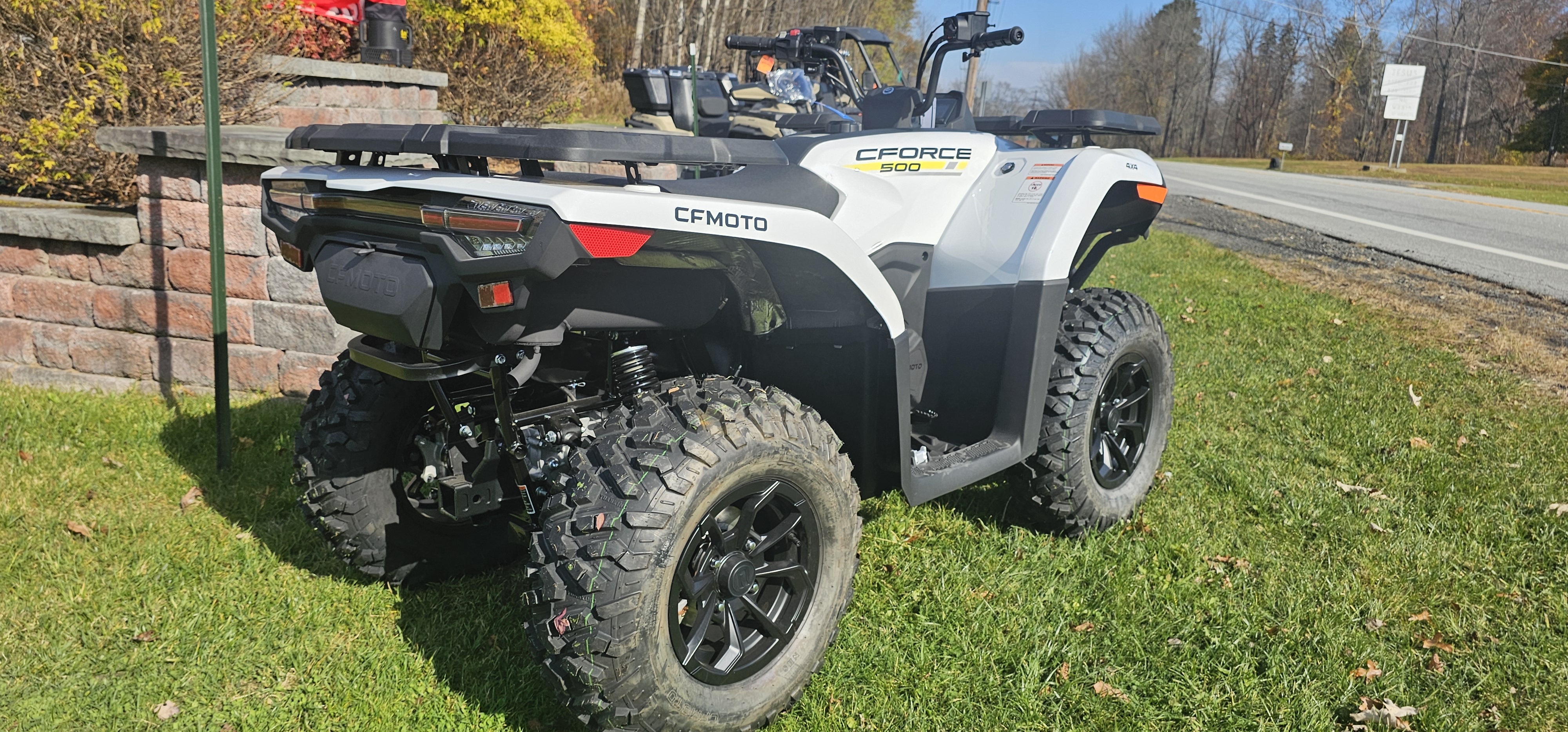

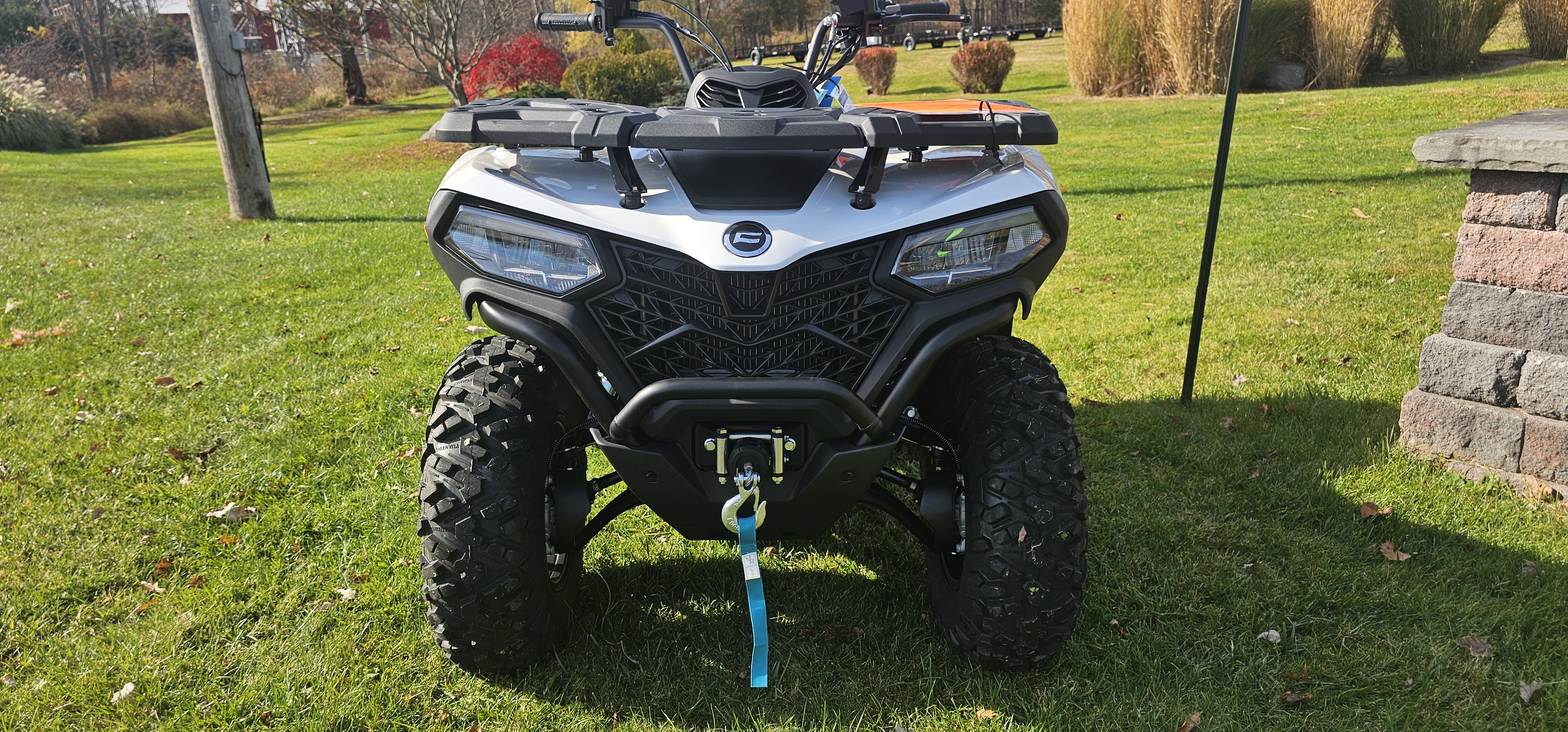

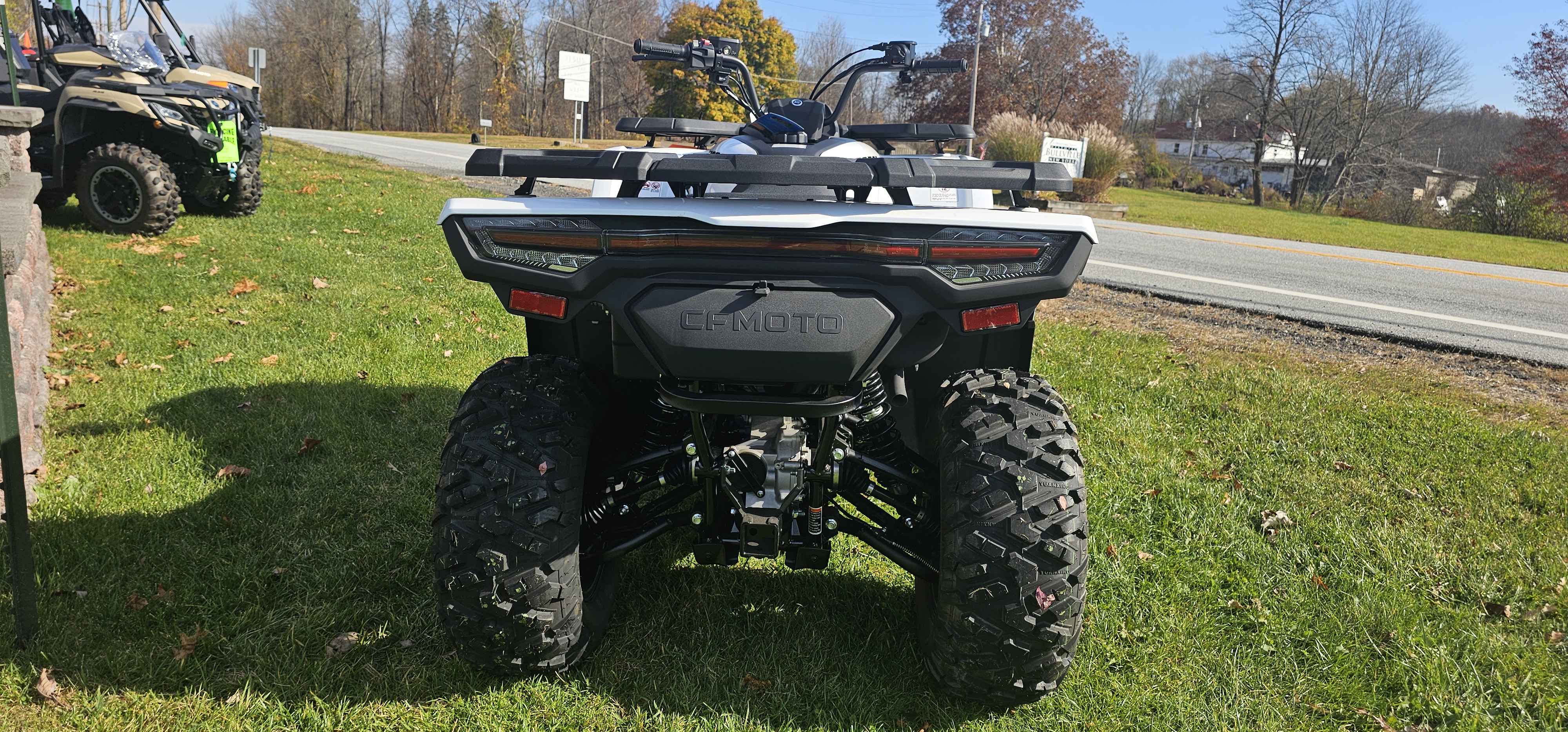

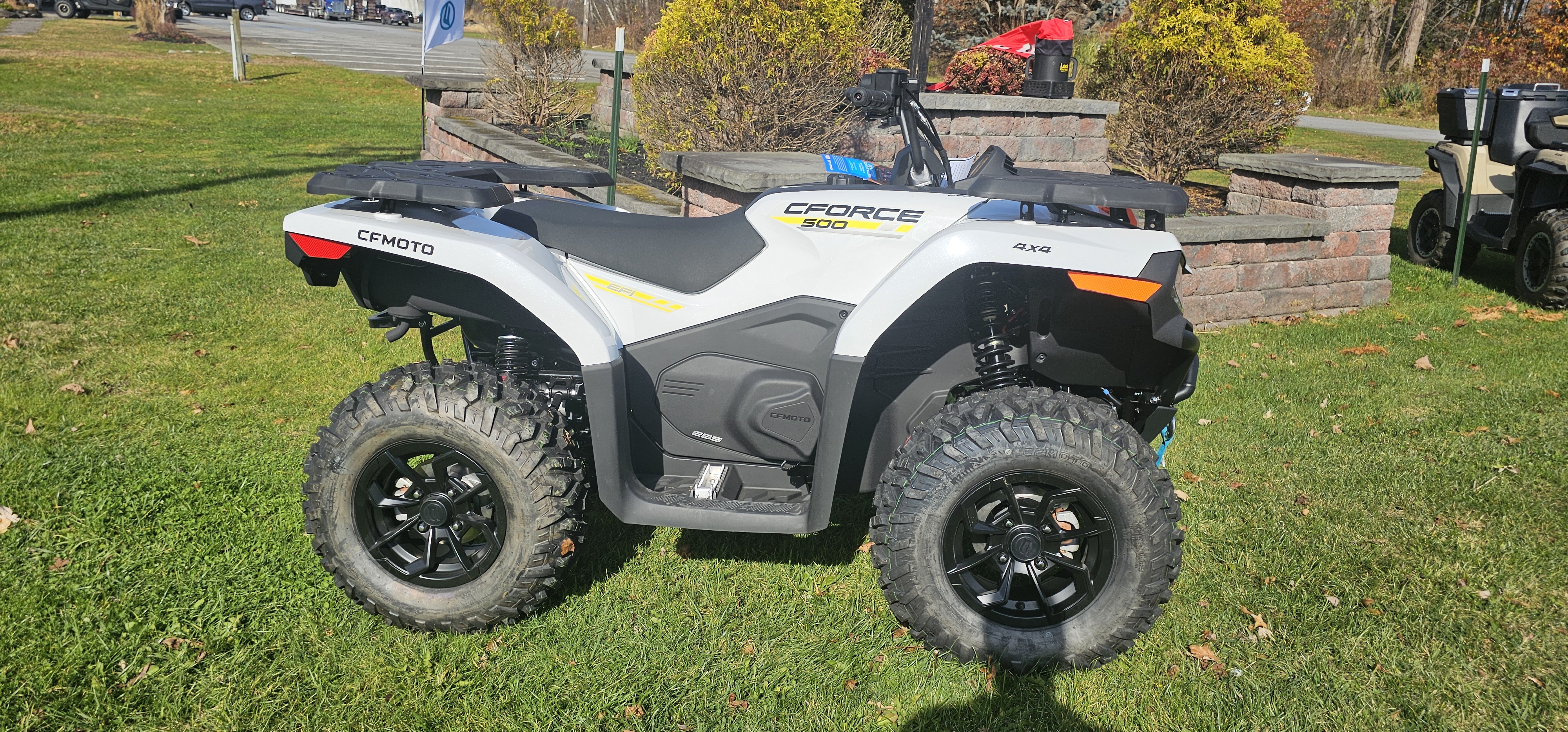

Ripping down a rugged trail. Hauling sacks of feed to the back lot. Plowing snow in the driveway. There’s nothing the CFORCE 500 can’t handle. Because this amazing value comes with all the features you need, standard, to do what needs to get done. And all at a price that will have you grinning from ear to ear.
Specifications
ENGINE
ENGINE TYPE
Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
DISPLACEMENT
500cc
MAX POWER
34 HP @ 6800 RPM
MAX TORQUE
29 LB-FT @ 6000 RPM
FUEL SYSTEM
EFI
COOLING SYSTEM
Liquid cooled
DRIVE
2WD/4WD/4WD lock
TRANSMISSION
CVTech® Automatic P/R/N/H/L
STARTER
Electric
DIMENSIONS & WEIGHT
LENGTH X WIDTH X HEIGHT
80” x 44” x 45”
WHEEL BASE
50”
DRY WEIGHT
713 lbs.
GROUND CLEARANCE
10.3”
FUEL TANK CAPACITY
4.5 gal.
RACK CAPACITY
Front/Rear: 75 lbs. / 132 lbs.
SEAT HEIGHT
20”
TURNING RADIUS
9.1'
CHASSIS
SUSPENSION
Front/Rear: Double A-arm independent
WHEELS
Front/Rear: 12” Cast aluminum alloy
TIRES
Front: 25” x 8” x R12 / Rear: 25” x 10” x R12
SHOCKS
Front/Rear: Spring pre-load adjustable, oil damped
BRAKING
Front/Rear: Hydraulic disc with parking brake
WHEEL TRAVEL
Front/Rear: 7.5"/8.9"
