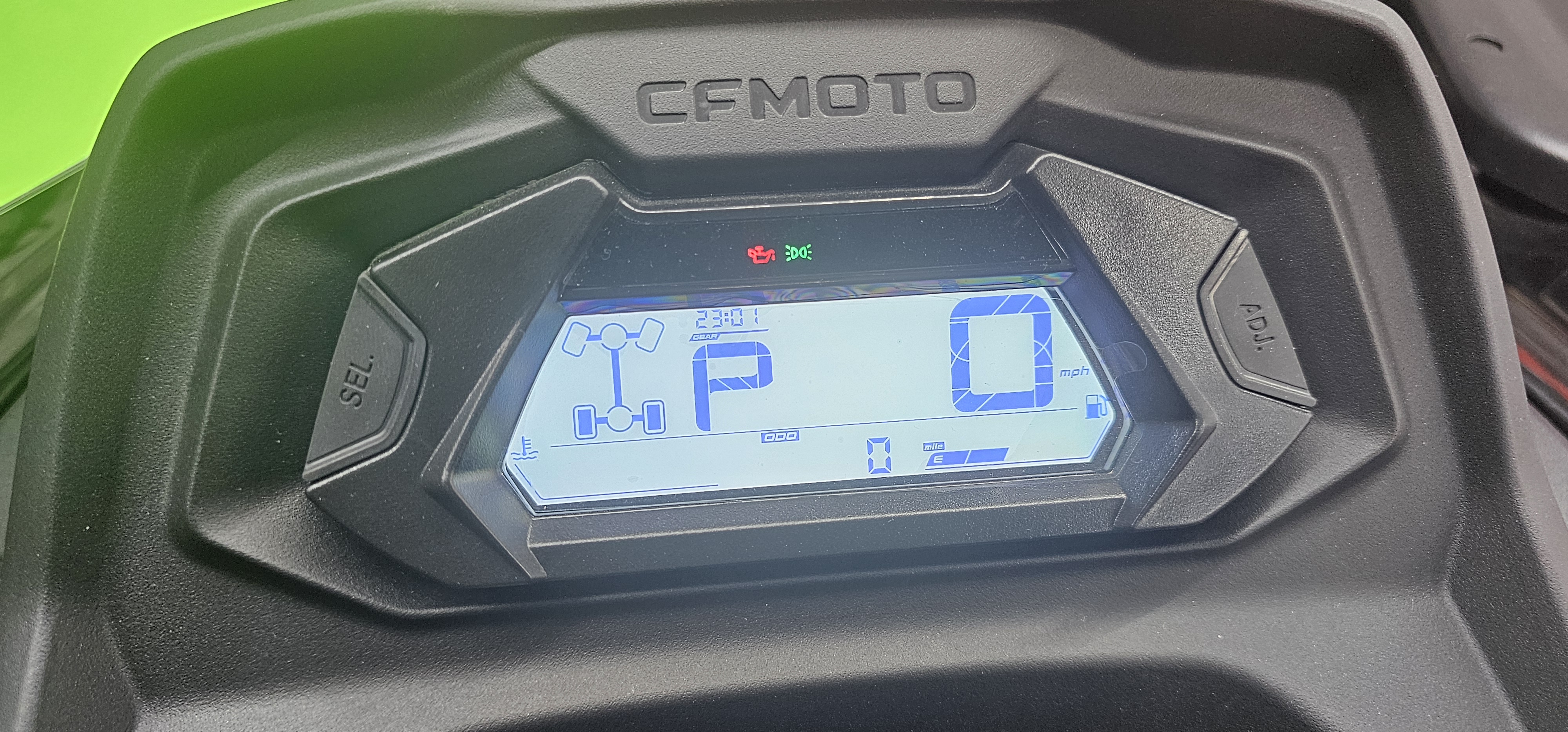

If you’re looking for an everything you need, nothing you don’t kind of machine, there’s nothing better than the CFORCE 400. This mid-size, hard-working go-getter may just be the lowest priced ATV around. The rugged steel rims and steel racks are just asking to be loaded up with gear. Surprising extras like LED headlight accents, a 12-volt accessory plug, USB port, 2” receiver, and an LCD display make this great value even better.


Specifications


ENGINE

ENGINE TYPE
Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
DISPLACEMENT
400cc
MAX POWER
30 HP @ 7200 RPM
MAX TORQUE
22 LB-FT @ 6000 RPM
FUEL SYSTEM
EFI
COOLING SYSTEM
Liquid cooled
DRIVE
2WD/4WD/4WD lock
TRANSMISSION
CVTech® Automatic P/R/N/H/L
STARTER
Electric

DIMENSIONS & WEIGHT

LENGTH X WIDTH X HEIGHT
80” x 44” x 45”
WHEEL BASE
50”
DRY WEIGHT
730 lbs.
GROUND CLEARANCE
9.8”
FUEL TANK CAPACITY
4.5 gal.
RACK CAPACITY
Front/Rear: 75 lbs. / 132 lbs.
SEAT HEIGHT
20”
TURNING RADIUS
9.1'

CHASSIS

SUSPENSION
Front/Rear: Double A-arm independent
WHEELS
Front/Rear: 12” Steel
TIRES
Front: 24" x 8" x R12 / Rear: 24" x 10" x R12
SHOCKS
Front/Rear: Spring pre-load adjustable, oil damped
BRAKES
Front/Rear: Hydraulic disc with parking brake
WHEEL TRAVEL
Front/Rear: 7.5"/8.9"

STANDARD EQUIPMENT

HITCH/RECEIVER
2”
TOWING CAPACITY
1350 lbs.
